    Hadfield Abrasion Resistant Steel Plate Mn13x120mm 6mm X120Mn12 DIN 1.3401

    Ask Lasest Price
    Brand Name : Rex Metal
    Price : USD/RMB/EUR
    Payment Terms : L/C, T/T, EXW, D/A, D/P, Western Union, MoneyGram
    Delivery Time : 5-20days
    Certification : ISO
    • Product Details
    • Company Profile

    Hadfield Abrasion Resistant Steel Plate Mn13x120mm 6mm X120Mn12 DIN 1.3401

    Hot Rolled Nm500 Hb500 Domex400 Ar450 Nm450 Ar500 Spa-H Abrasion Anti

    Nm400 Wear Steel Sheets Resist Wear Resistant Stee

    Abrasion Resistant (AR) steel plate is typically made in the as-rolled condition. These types/grades of steel plate products have been developed specifically for long service life in harsh conditions. AR products are suitable for a variety of applications in areas such as mining/quarrying, conveyors, material handling and construction, and earthmoving. Designers and plant operators choose AR plate steel when striving to extend service life of critical components, and reduce the weight of each unit put into service. The benefits of employing wear-resistant plate steel in applications involving impact and/or sliding contact with abrasive material are immense. Abrasive resistant alloy steel plates generally offer good resistance to sliding and impact abrasion. The high carbon content in the alloy increases the hardness and toughness of the steel, making it an ideal material for applications that require high impact or high abrasion resistance. It is possible to get high hardness with a high carbon steel, and the steel will have good resistance to penetration. However, the wear rate will be rapid compared to heat treated alloy plate because high carbon steel is brittle, so particles can be more easily torn from the surface. As a result, high carbon steels are not used for high wear applications.


    Product Description

    Product Name
    Hot Rolled Mn13 High Manganese Hadfield Wear Resistant Steel Plate
    Material
    Din 1.3401, K700, Mn13, X120Mn12 High Manganese steel plate
    Brand
    TISCO, Bao Steel
    Standard
    DIN, GB, ISO, JIS, AISI, ASTM
    Grade
    Mn13, X120Mn12, 1.3401, K700
    Length
    2m to 7m
    Width
    1m to 2m
    Thickness
    3mm to 50mm

    Mn13 Steel Features:
    High Manganese Steel Plate (Mn13/X120Mn12) is a non-attractive and work solidifying kind of steel which flourishes with serious
    wear conditions. The best thing for the plate is: the more effect and pounding it gets, the harder its surface becomes.
    High Manganese Steel Plate (Mn13/X120Mn12) rolled plate can reduce the cost of using for quick-wear part of low equipment and save
    the overhaul fee of equipment, so it improves the competition.


    Application
    Widely used in building, industry, machinery and etc.
    Such as wear-out parts of impact resistance ,such as scaleboard of shot-blasting machine, scaleboard of ball crusher; ball
    grinder,bucket lip of grab,screw die of crusher,hoppers, truck Bed Bodies, scrapers, conveyor Parts, baffle plates, safe deposit
    box and so on .

    Also used to make simply structure ,the forging which request wear-resistance of low impact,such as scaleboard , pinion rack,the
    wall of crashing, sleeve and etc.,
    Mn 13 Plate Chemical Composition(%)
    C
    Si
    Mn
    P
    S
    0.90-1.20
    0.30-0.80
    11.0-14.0
    ≤0.035
    ≤0.030

    Material

    NM450L,NM450A,NM600,NM400,NM400L,NM400A,NM500A,NM500,NM360L,NM360,NM550,NM450
    NR360,NR400,MITTA 400F,MITTA 450F,MITTA 500F
    Xar400,Xar450,Xar500,Xar550,Xar600
    DILLIDUR400,DILLIDUR500,DILLIDUR400V,DILLIDUR500V,DILLIDUR450V
    QUARD400,QUARD450,QUARD500
    KN-55,KN-60,KN-63,
    FORA400,FORA500,CREUSABRO4800,CREUSABRO8000
    RAEX400,RAEX450,RAEX500

    High-Mn wear resistant steel plate
    ZGMn13-1,ZGMn13-2,ZGMn13-3,ZGMn13-4,ZGMn13-5
    ASTM-A(UNS-J91109),ASTM-B-1(UNS-J91119),ASTM-B-2(UNS-J91129),ASTM-B-3(UNS-J91139),ASTM-B-4(UNS-J91149),ASTM-C(UNS-J91309),ASTM-D(UNS-J91459),ASTM-E-1(UNS-J91249),ASTM-E-2(UNS-J91339) ,ASTM-F
    SCMnH1,SCMnH2,SCMnH3,SCMnH11,SCMnH21
    GX120MnMo7-1,GX110MnMo13-1,GX120Mn13,GX120MnCr132,GX120MnNi13-3,GX120Mn17,GX90MnMo14,GX120MnCr17-2

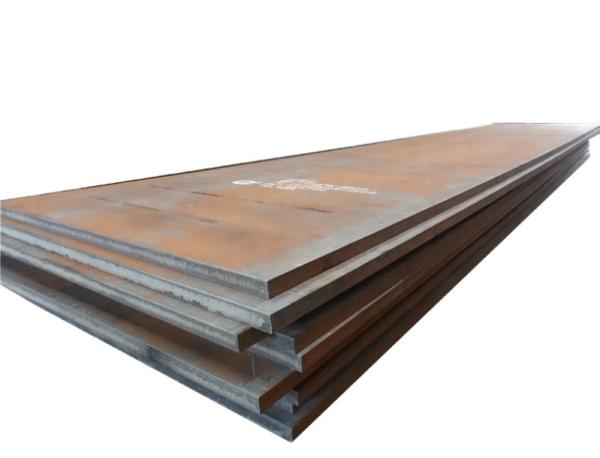

    Hadfield Abrasion Resistant Steel Plate Mn13x120mm 6mm X120Mn12 DIN 1.3401

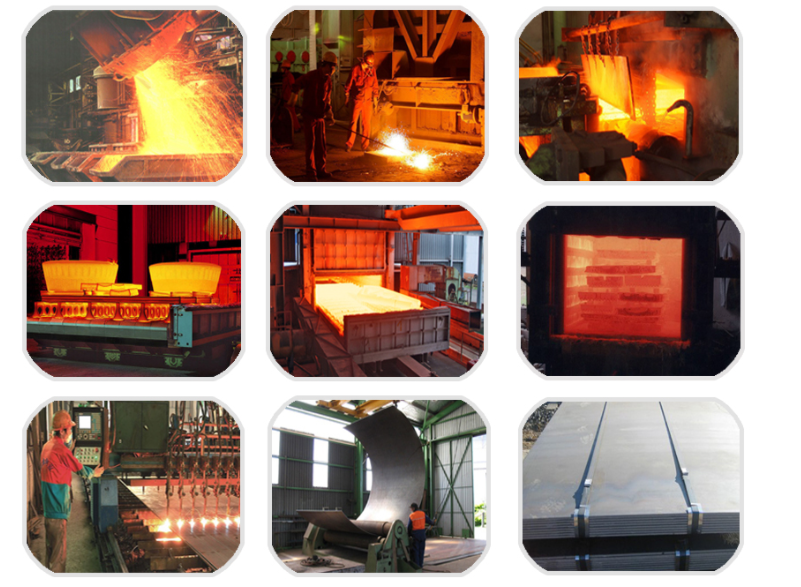

    Production Process


    Packing and Shipping

    304/201/316L National Standard Stainless Steel Pipe/Stainless Steel Sanitary Pipe National Standard Stainless Steel Pipe

    Company Profile

    Jiangsu Rex Metal Products Co., Ltd was established in 2010, located in Shandong Province,and has our factories of with 2000㎡. Our main products include steel plates,steel pipes, steel bars etc. which have been exported to over 30 countries like England, Australia, South Korea, Russia, Brazil, Turkey, India, Indonesia, South Africa, Ecuador, Uzbekistan, Thailand etc.

    We are in the first class agency of Chinese state-owned enterprise, Tisco Steel group, BaoSteel (Shanghai) and WuSteel Group.

    We have advanced production facilities, producing center with cutting machines, punching machines, water jet cutting machines, polishing machines, plate shearers and draw benches etc. We have passed theIS09001 quality system,and EU CE system. Our aim is to provides with good quality steel products and better service. We support SGS, BV and other third party test.

    We will always welcome all the customers and friends all over the world to visit our factories and reach great cooperations.
